FEATURES
Model No.
PRODUCT DRAWING
SPECIFICATION
TREAD TYPES

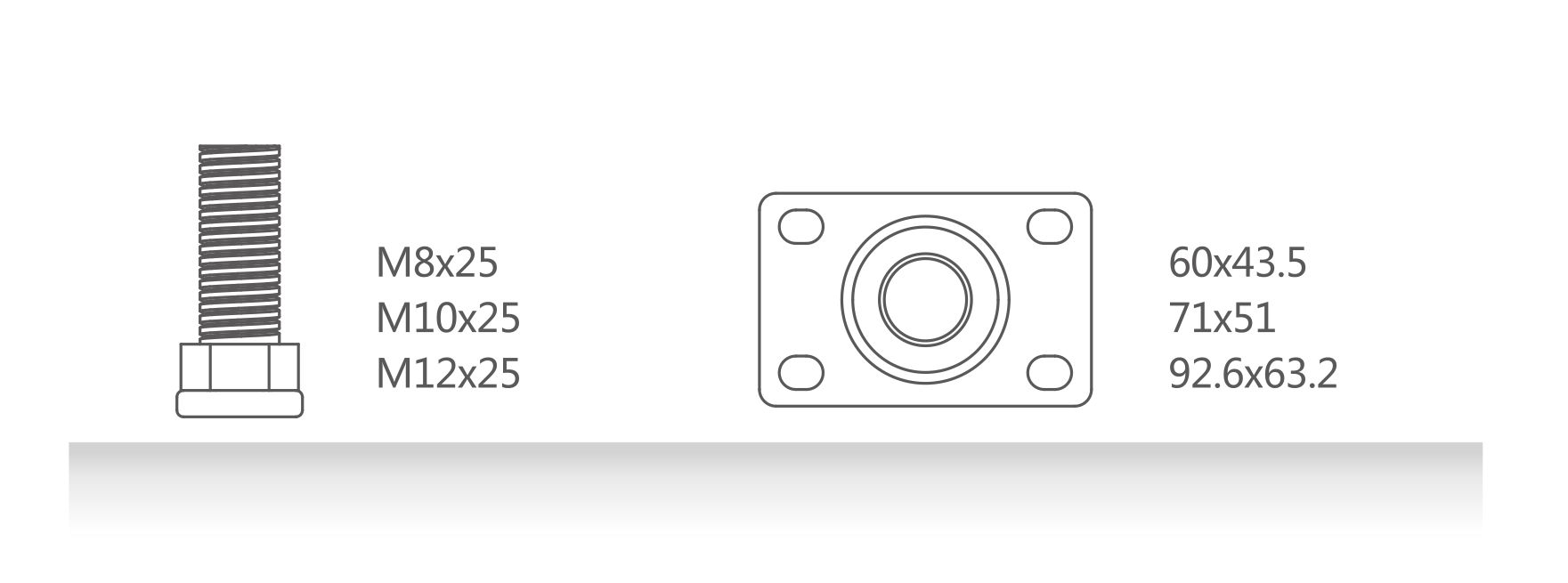

OPTIONS
INDUSTRIES

➤Swivel or rigid.
➤Double ball bearings.
➤Silent,non marking casters with high cost performance.

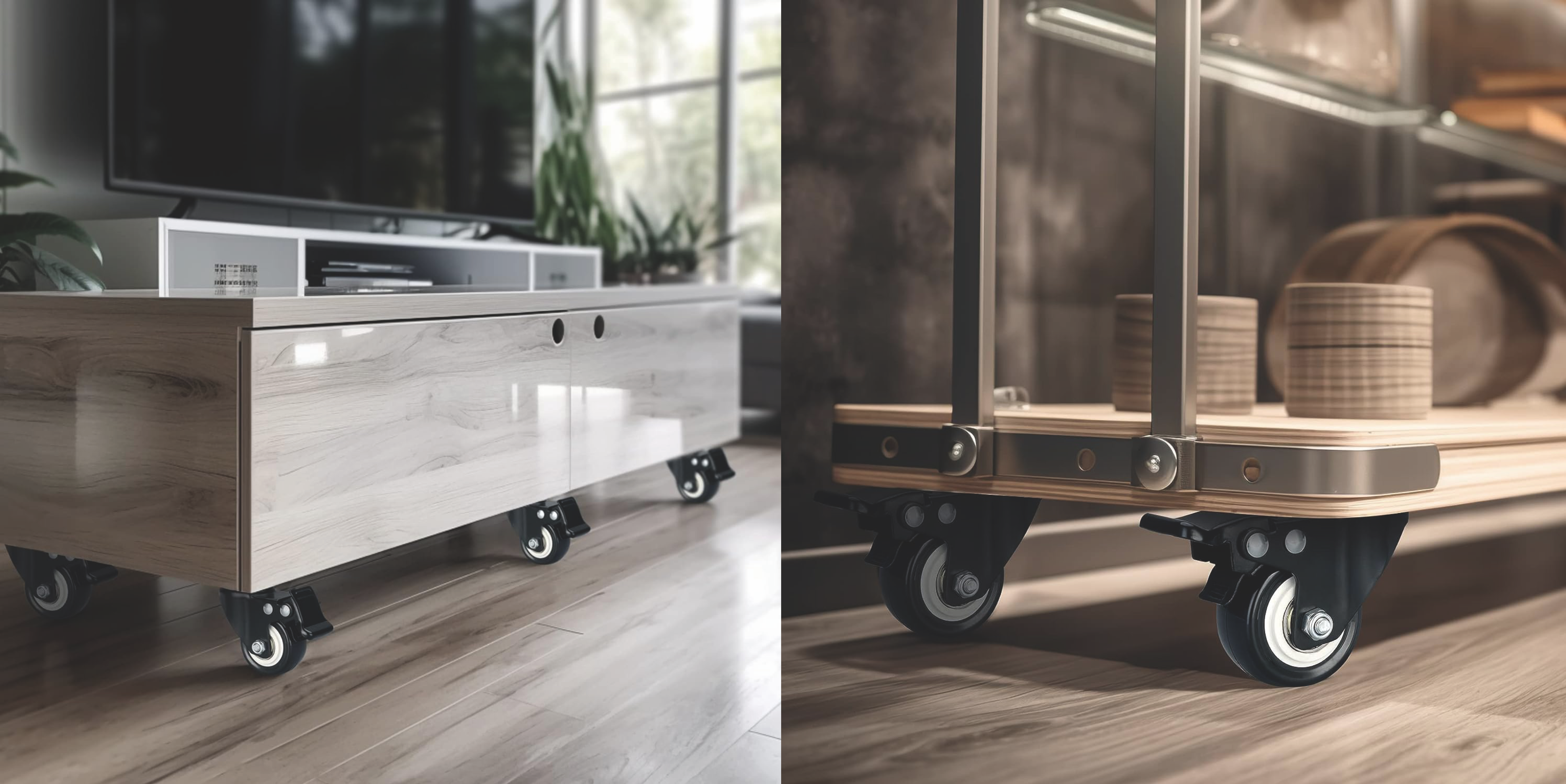

➤These casters can be used for workbench, cart,furniture,trolley, shelfwooden cabinet,Industrial appliances etc.
➤Suitable for use on flat concrete foor,marble,wood foors,carpets andceramic tiles.

The Diamond Caster is a truly remarkable and unique product. It is designed with precision and engineered to offer exceptional performance. These casters are known for their durability and strength, capable of handling heavy loads with ease. The wheels are often made of high-quality materials that ensure smooth and stable movement, even on various types of surfaces. The Diamond Caster stands out for its innovative design and advanced features. It may incorporate special technologies or mechanisms that enhance its functionality, such as enhanced shock absorption or precise steering control. This makes it ideal for applications where reliability and maneuverability are crucial. The casters could also be aesthetically appealing, with a sleek and modern look that adds a touch of style to the items they are attached to. Whether it's used in industrial equipment, furniture, or other applications, the Diamond Caster offers a reliable and efficient solution for effortless mobility. It is a testament to quality and engineering, providing users with a superior caster option that combines form and function. With the Diamond Caster, you can expect seamless movement, long-lasting performance, and a product that truly stands out in its field.

The Diamond Caster is an outstanding product with a variety of remarkable features. It offers the option of being either swivel or rigid, providing flexibility to meet different application needs. The incorporation of double ball bearings ensures smooth operation and durability. What truly sets the Diamond Caster apart is its silent and non-marking nature, along with its high cost performance. This means it not only operates quietly but also doesn't leave marks on various surfaces. These casters find wide application in numerous items such as workbenches, carts, furniture, trolleys, shelf wooden cabinets, and industrial appliances. Their suitability extends to different floor types including flat concrete floors, marble, wood floors, carpets, and ceramic tiles. Whether in a professional workshop or a domestic setting, the Diamond Caster is a reliable choice that guarantees effortless movement and functionality. Its adaptability and quality make it a preferred option for enhancing the mobility and usability of a diverse range of objects and equipment.

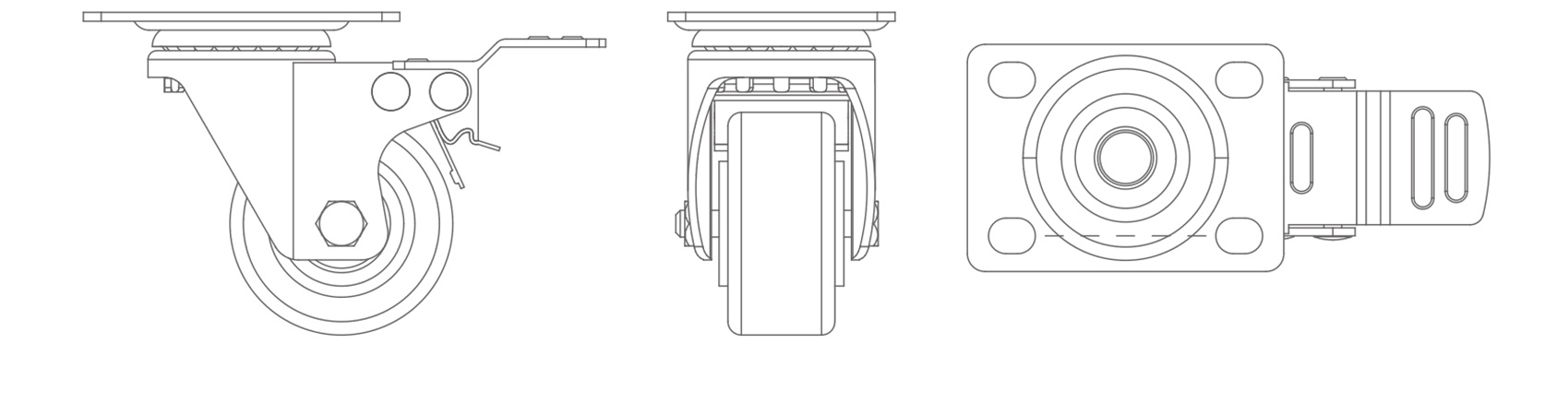

Swivel with brake
Swivel

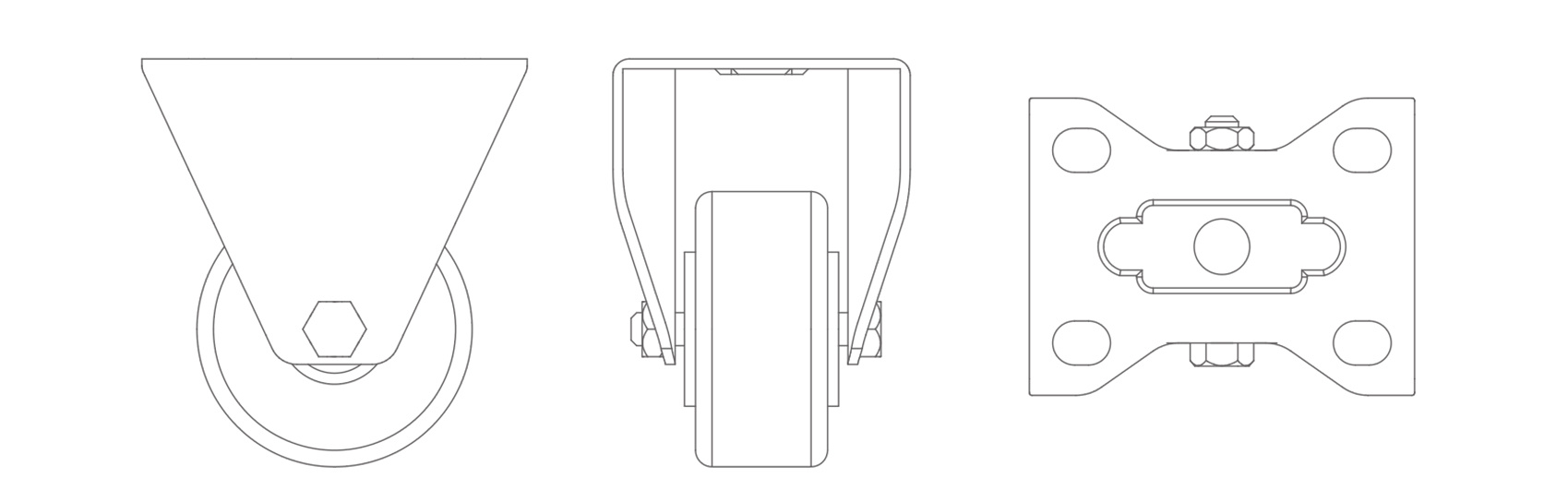

Rigid

Spec	Wheel materia	Wheel dia	Width	Load height	Plate size	Hole spacing	Aperture	Thickness of baseplate/bracket	Load capacity
1.5''	PP+PVC	40	22	60	60x43.5	44x30	6.3x9.3	1.8/1.5	30
2''	PP+PVC	50	24	73	71x51	51x35	8x10.5	2.0/1.8	40
2.5''	PP+PVC	65	32	91	92.6x63.2	73x45	8.2x11.2	3.0/2.3	60
3''	PP+PVC	75	32	102	92.6x63.2	73x45	8.2x11.2	3.0/2.3	70
4''	PP+PVC	100	32	128	92.6x63.2	73x45	8.2x11.2	3.0/2.3	80
5''	PP+PVC	125	32	152	92.6x63.2	73x45	8.2x11.2	3.0/2.3	80

1.5''	PVC	40	22	60	60x43.5	44x30	6.3x9.3	1.8/1.5	30
2''	PVC	50	24	73	71x51	51x35	8x10.5	2.0/1.8	40
2.5''	PVC	65	32	91	92.6x63.2	73x45	8.2x11.2	3.0/2.3	60
3''	PVC	75	32	102	92.6x63.2	73x45	8.2x11.2	3.0/2.3	70
4''	PVC	100	32	128	92.6x63.2	73x45	8.2x11.2	3.0/2.3	80
5''	PVC	125	32	152	92.6x63.2	73x45	8.2x11.2	3.0/2.3	80

1.5''	PP	40	22	60	60x43.5	44x30	6.3x9.3	1.8/1.5	30
2''	PP	50	24	73	71x51	51x35	8x10.5	2.0/1.8	40
2.5''	PP	65	32	91	92.6x63.2	73x45	8.2x11.2	3.0/2.3	60
3''	PP	75	32	102	92.6x63.2	73x45	8.2x11.2	3.0/2.3	70
4''	PP	100	32	128	92.6x63.2	73x45	8.2x11.2	3.0/2.3	80
5''	PP	125	32	152	92.6x63.2	73x45	8.2x11.2	3.0/2.3	80

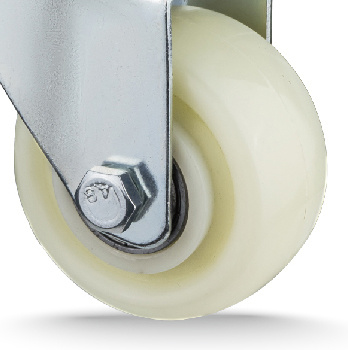

White PP

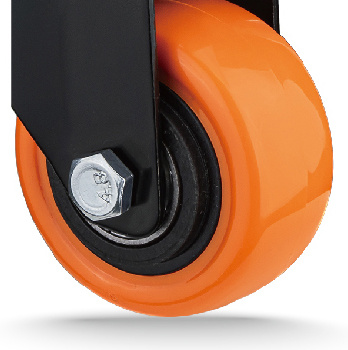

Orange PVC on black PP

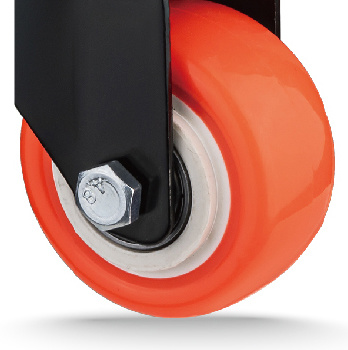

Red PVC on white PP

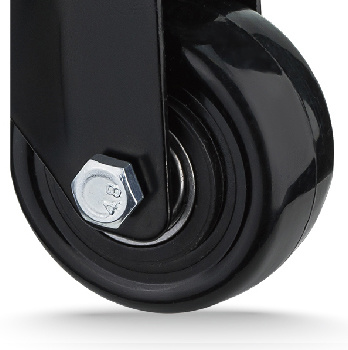

Black PVC on white PP
Cast Iron
➤Furniture
➤Institutional
➤Laundry
➤Retail Environment
