➤Optional wheels made of different materials available fordifferent fields.
➤Full double ball raceways for greater durability and better flexibility.
➤Raceway with metal dust cap.
➤Zinc plated, chrome plated, black plated available.

The Medium Duty Caster is a remarkable product that showcases a host of impressive features. It offers the option of wheels crafted from various materials, enabling it to be tailored for different fields and specific usage scenarios. This adaptability ensures optimal performance in a wide range of environments. The inclusion of full double ball raceways is a key highlight. It not only enhances durability but also provides superior flexibility, allowing for smooth and effortless movement. The raceway is further enhanced with a metal dust cap, adding an extra layer of protection and ensuring long-lasting functionality. In terms of finish, there are several attractive options available. Zinc plated, chrome plated, and black plated finishes give the Medium Duty Caster a sleek and professional look while also offering corrosion resistance. This makes it suitable for both industrial and commercial applications where aesthetics and durability are equally important. Whether used in warehouses, factories, or other settings, the Medium Duty Caster stands out for its quality, performance, and customizable features. It is a reliable choice that combines functionality with style, ensuring seamless mobility and dependable service for years to come.

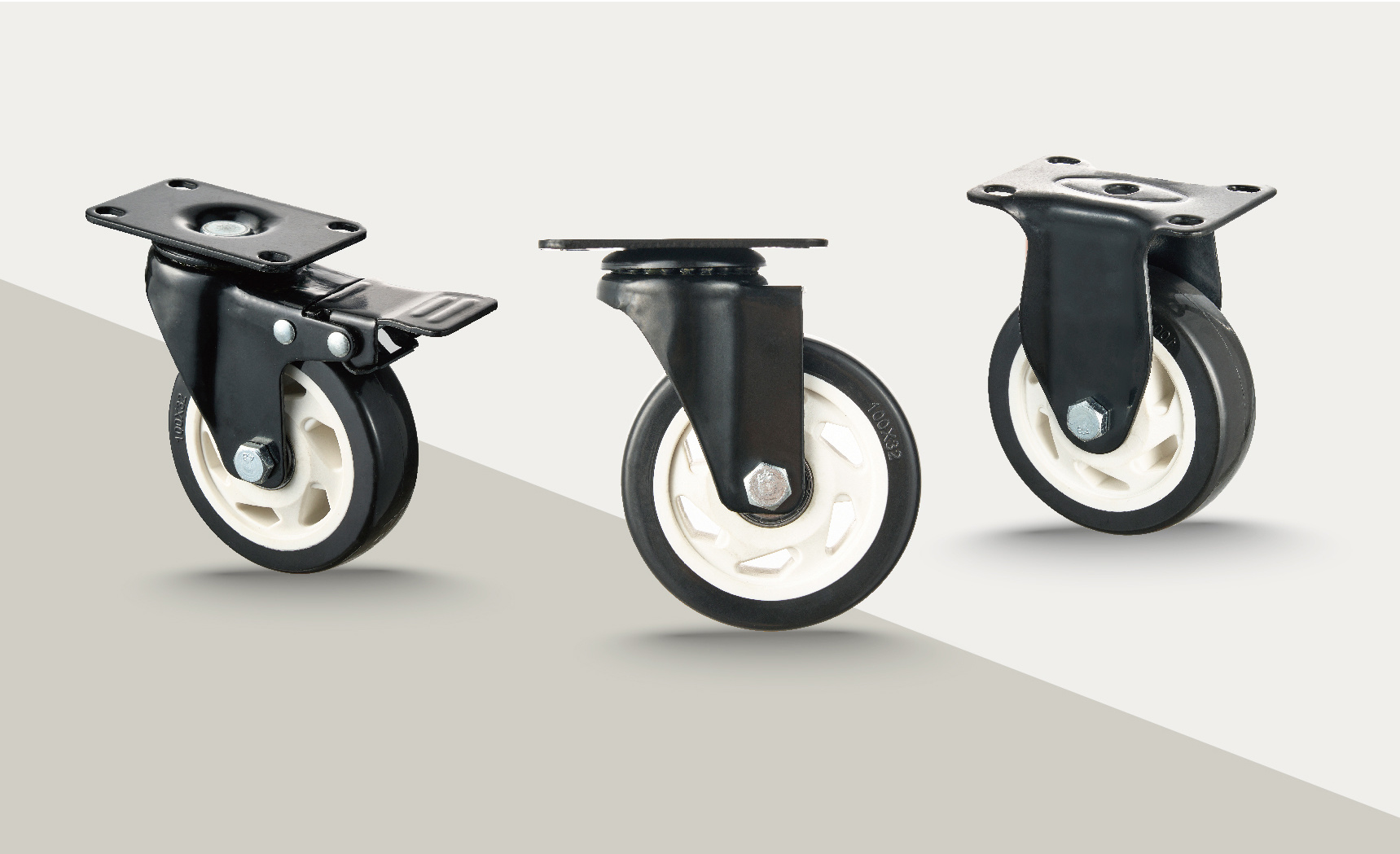

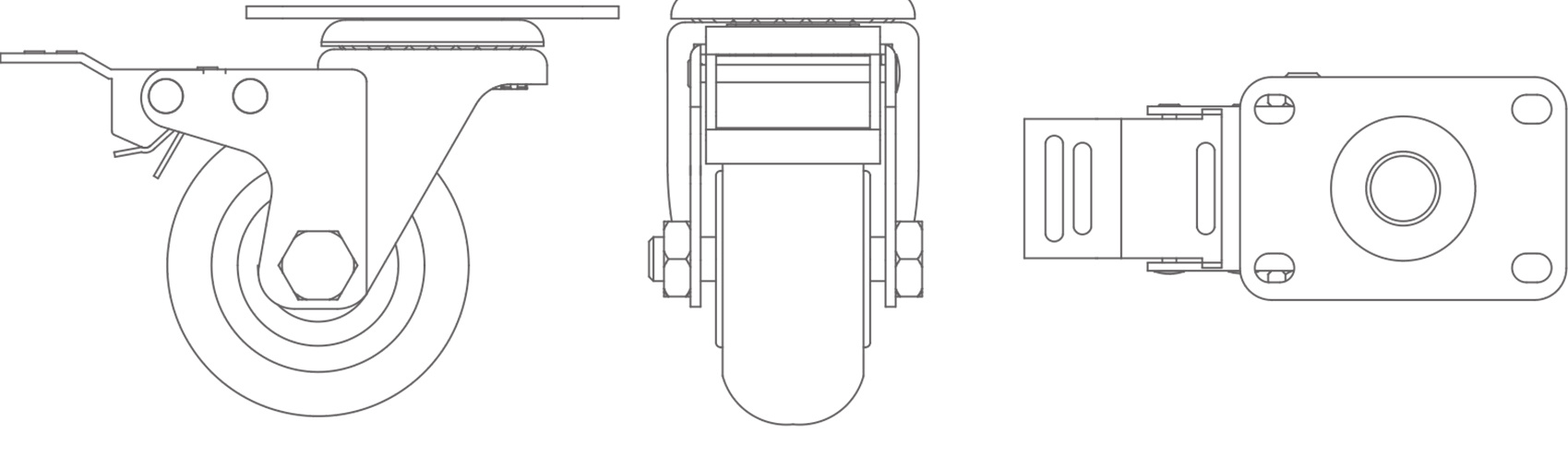

Swivel with brake

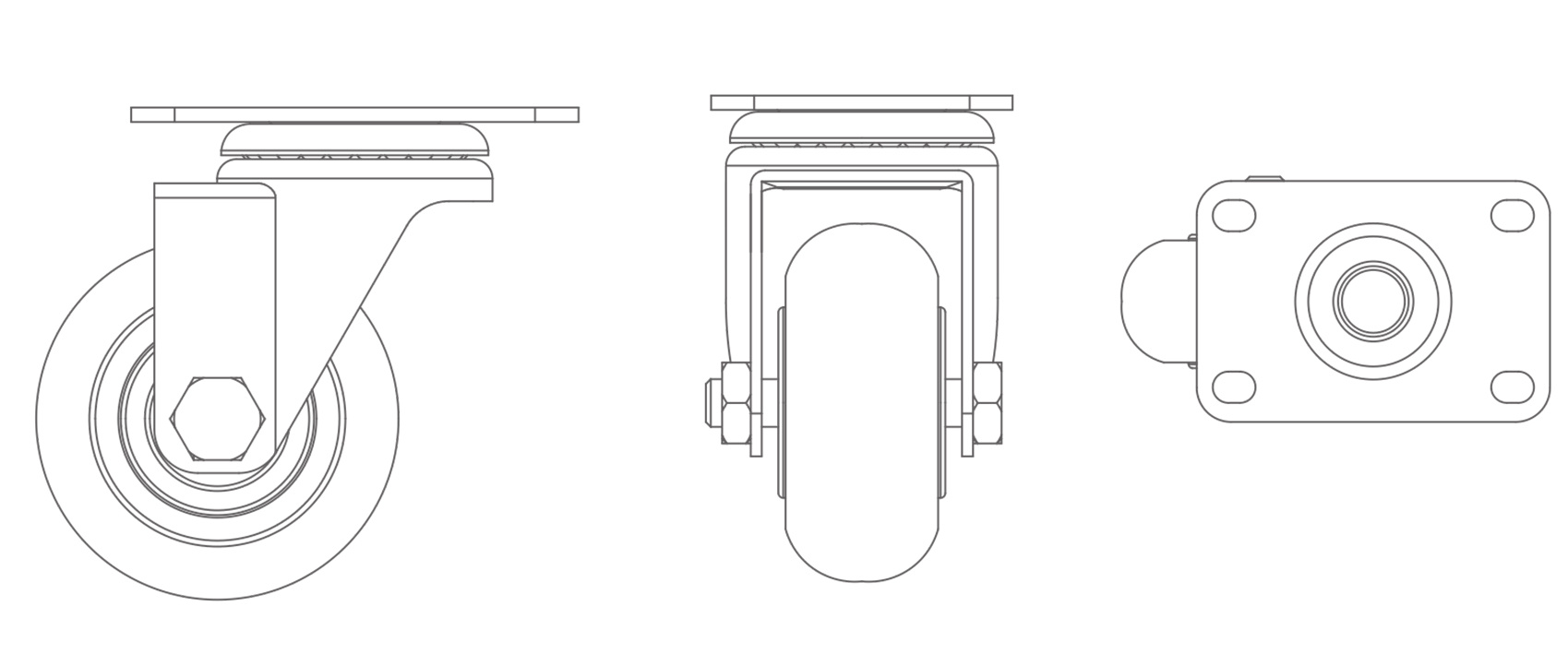

Swivel

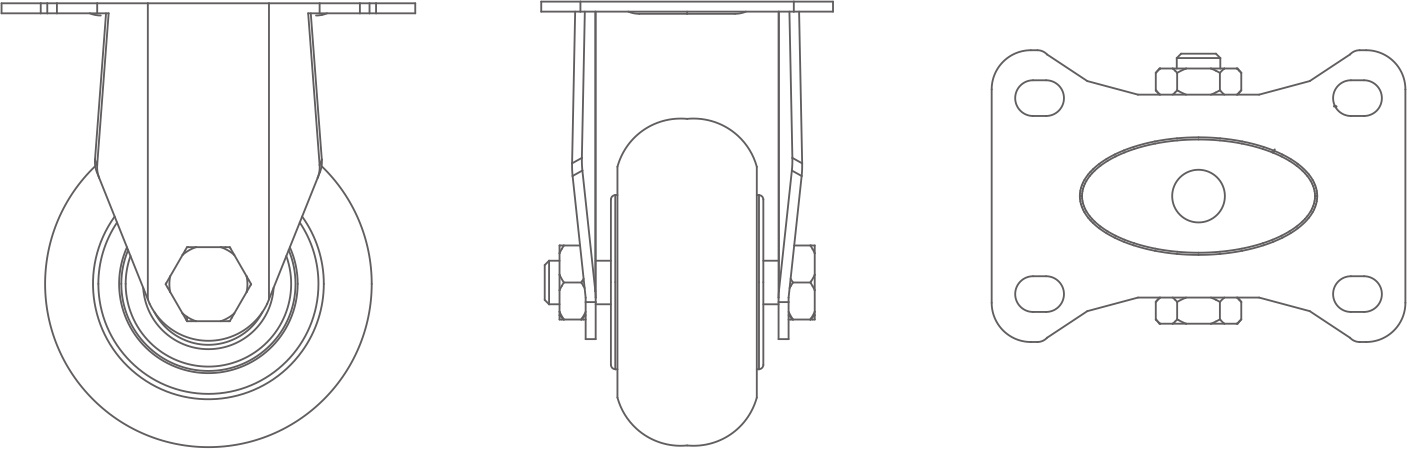

Rigid

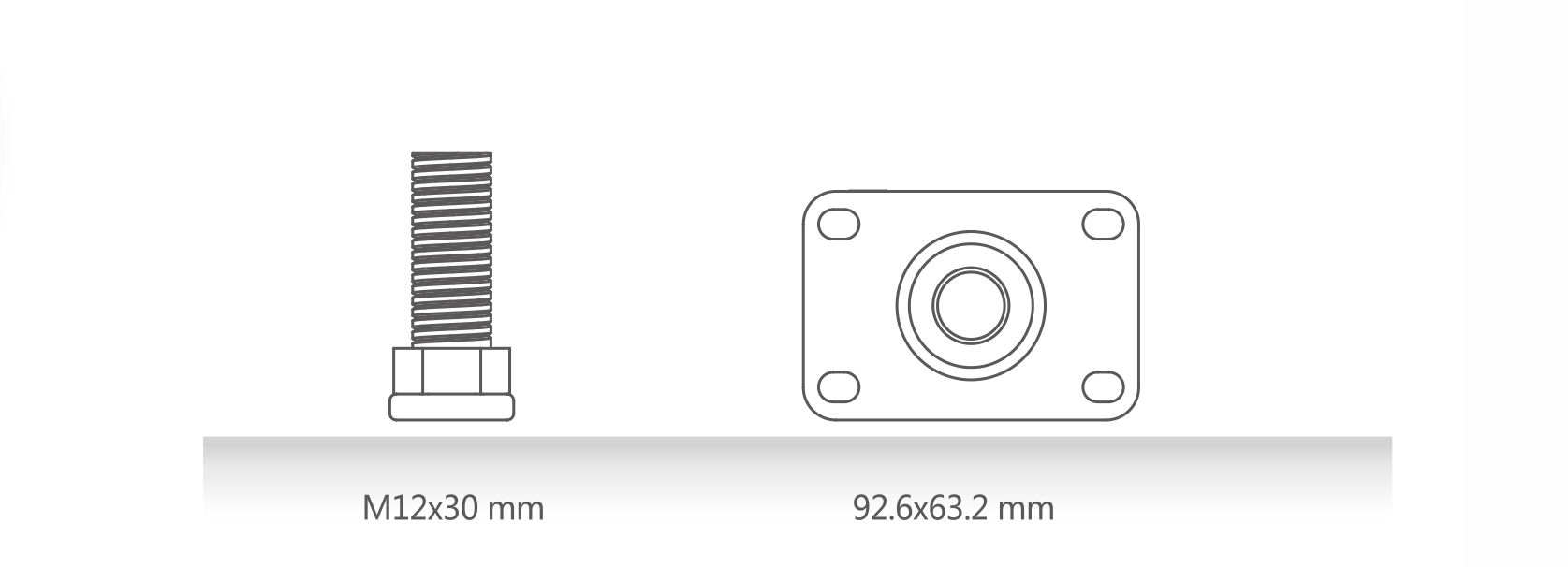

Spec	Wheel materia	Wheel dia	Width	Load height	Plate size	Hole spacing	Aperture	Thickness of baseplate/bracket	Load capacity
2.5''	PP	65	32	91	92.6x63.2	73x45	8.2x11.2	3/2.3	60
3''	PP	75	32	102	92.6x63.2	73x45	8.2x11.2	3/2.3	70
4''	PP	100	32	128	92.6x63.2	73x45	8.2x11.2	3/2.3	80
5''	PP	125	32	152	92.6x63.2	73x45	8.2x11.2	3/2.3	80

2.5''	PVC	65	32	91	92.6x63.2	73x45	8.2x11.2	3/2.3	60
3''	PVC	75	32	102	92.6x63.2	73x45	8.2x11.2	3/2.3	70
4''	PVC	100	32	128	92.6x63.2	73x45	8.2x11.2	3/2.3	80
5''	PVC	125	32	152	92.6x63.2	73x45	8.2x11.2	3/2.3	80

3''	TPR	75	32	102	92.6x63.2	73x45	8.2x11.2	3/2.3	70
4''	TPR	100	32	128	92.6x63.2	73x45	8.2x11.2	3/2.3	80
5''	TPR	125	32	152	92.6x63.2	73x45	8.2x11.2	3/2.3	80

3''	PU	75	32	102	92.6x63.2	73x45	8.2x11.2	3/2.3	70
4''	PU	100	32	128	92.6x63.2	73x45	8.2x11.2	3/2.3	80
5''	PU	125	32	152	92.6x63.2	73x45	8.2x11.2	3/2.3	80

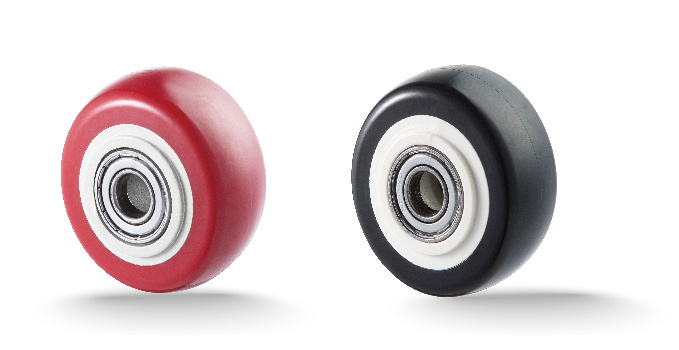

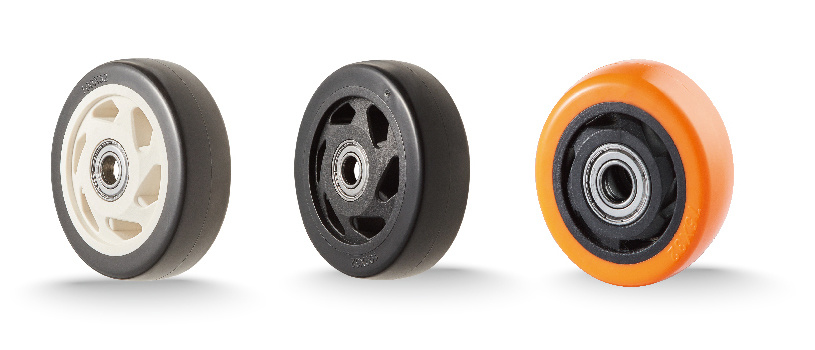

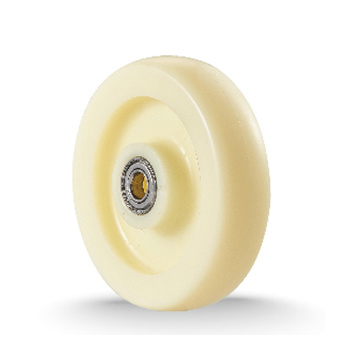

Polypropylene wheel with double ball bearings
Neoprene wheel with double ball bearings

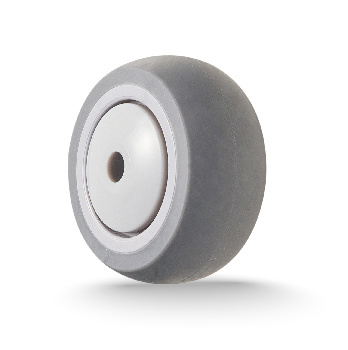

Thermoplastic rubber wheel with single bearingand full thread guards

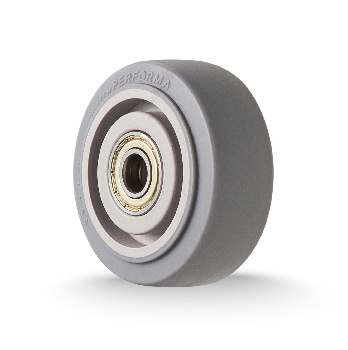

Thermoplastic rubber wheel with double ball bearings
Polyvinyl Chloride wheel with single bearing andfull thread guards

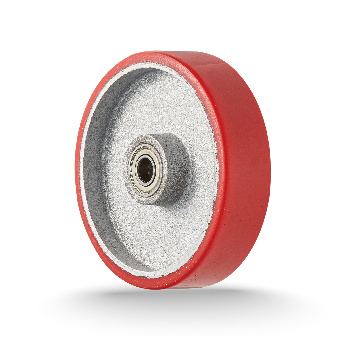

Wheel with Polyurethane on castiron core with double ball bearings
Polyvinyl Chloride wheel with double ball bearings
Polyvinyl Chloride wheel with double ball bearings
Polyvinyl Chloride wheel with single bearing and full thread guards

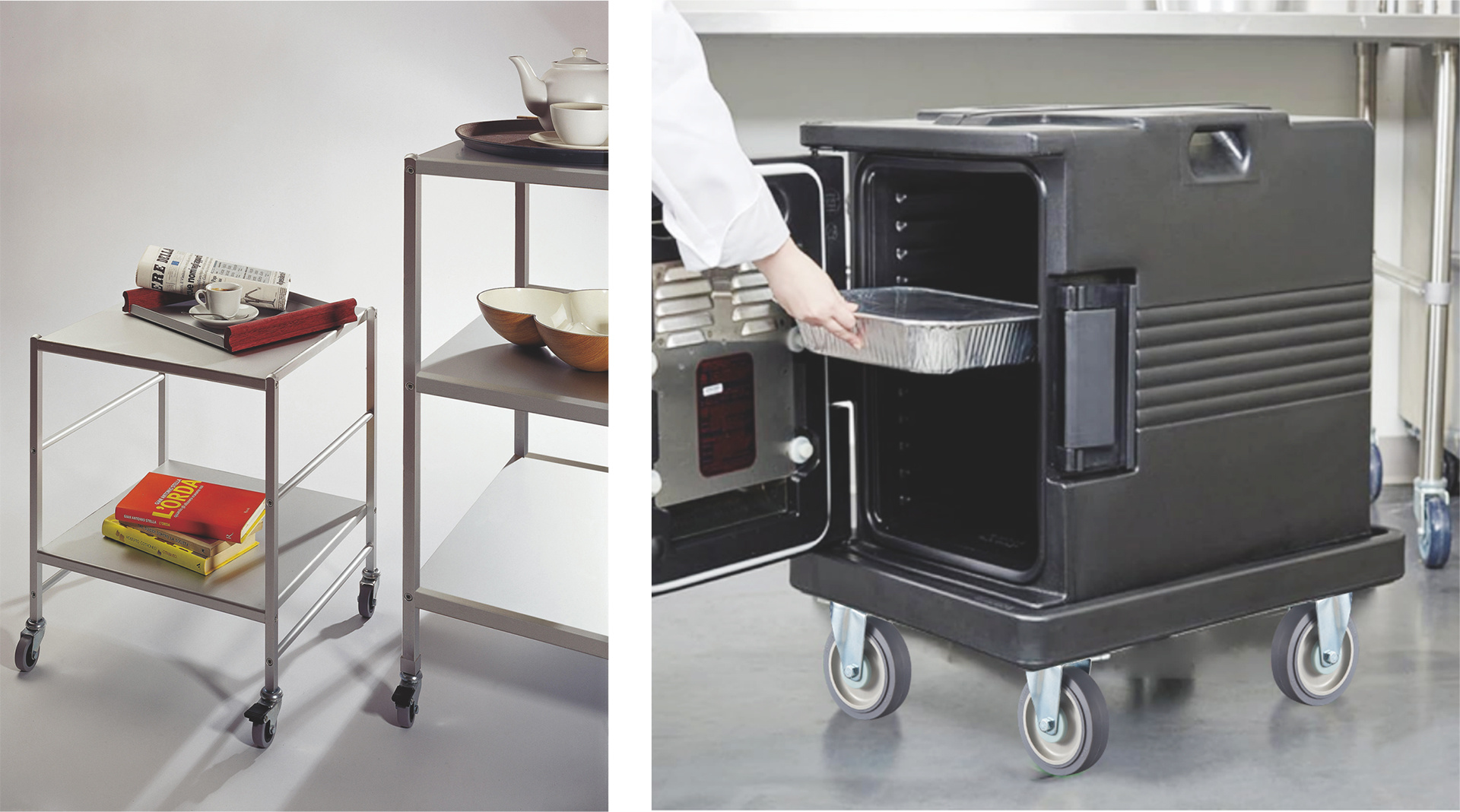

➤Furniture
➤Institutional
➤Laundry
➤Retail Environment
