➤optional single/double ball raceways for good performance
➤Swivel/swivel with side brake/rigid optional.
➤Zinc/chrome/golden/bronzed/electrophoresis coating/powder coating optional.
➤Perfect for applications such as cabinet,furniture,cage etc.

Medium Duty Caster
Grey Caster

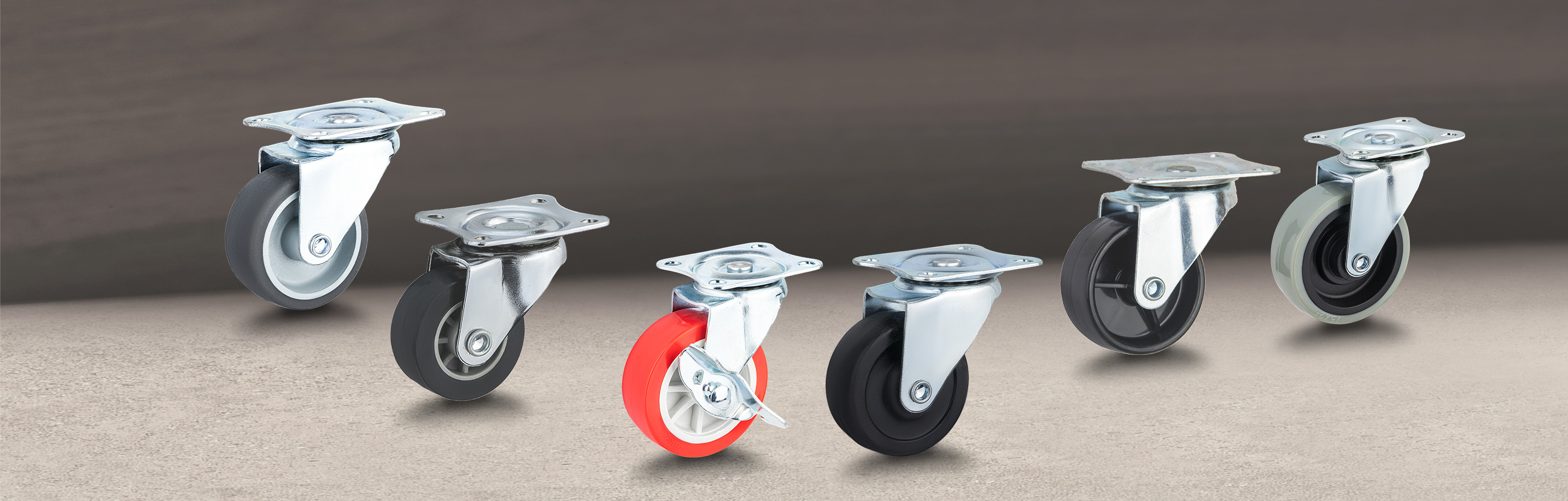

The Light Duty Caster Series is a remarkable range that offers a plethora of outstanding features. With the option of single or double ball raceways, it guarantees excellent performance and smooth movement. The casters come with the flexibility of being swivel, swivel with a side brake, or rigid, allowing for customizable usage depending on specific needs. The surface finish options, including zinc, chrome, golden, bronzed, electrophoresis coating, and powder coating, not only enhance the aesthetic appeal but also provide durability and protection. These casters are truly versatile and ideal for a wide range of applications such as cabinets, furniture, and cages. Whether it's for delicate furniture pieces or heavy-duty cabinets, the Light Duty Caster Series ensures effortless mobility and stability. Its high-quality construction and customizable options make it a preferred choice for many. It effortlessly combines functionality with style, making it an essential component for any project that requires smooth and reliable caster solutions. Discover the seamless integration and enhanced performance that the Light Duty Caster Series brings to your applications.

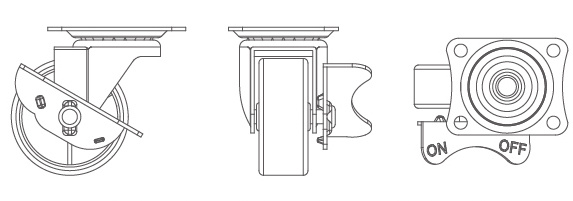

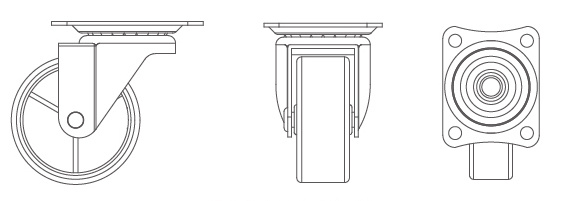

Swivel
Swivel with brake

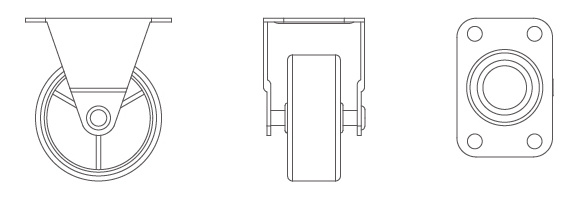

Rigid

Spec	Wheel materia	Wheel dia	Width	Load height	Plate size		Hole spacing		Aperture	Thickness of baseplate/bracket	Load capacity
Spec	Wheel materia	Wheel dia	Width	Load height	Directional	Universal	Directional	Universal	Aperture	Thickness of baseplate/bracket	Load capacity
1''	PP	25.5	13	33	37.5x19.6	38x32	29	29.5x23.5	4.2	1.2/1.2	10
1.25''	PP	30	13	36	37.5x19.6	38x32	29	29.5x23.5	4.2	1.2/1.2	15
1.5''	PP	39	17	50	46x25	47x39	36x15	35x28	5	1.2/1.2	20
2''	PP	50	21	63	58x40	59x47	45x25	45x35	6.2	1.5/1.5	30
2.5''	PP	65	26	84	70x47	70x58	55x28	53x41	8.4	2.0/1.8	35
3''	PP	75	26	95	70x47	70x5.8	55x28	53x41	8.4	2.0/1.8	45
4''	PP	100	26	116	85x72	85x72	61x54	61x54	8.4	2.0/1.8	55

1''	Rubber	25.5	13	33	37.5x19.6	38x32	29	29.5x23.5	4.2	1.2/1.2	10
1.25''	Rubber	30	13	36	37.5x19.6	38x32	29	29.5x23.5	4.2	1.2/1.2	15
1.5''	Rubber	39	17	50	46x25	47x39	36x15	35x28	5	1.2/1.2	20
2''	Rubber	50	21	63	58x40	59x47	45x25	45x35	6.2	1.5/1.5	30
2.5''	Rubber	65	26	84	70x47	70x58	55x28	53x41	8.4	2.0/1.8	35
3''	Rubber	75	26	95	70x47	70x5.8	55x28	53x41	8.4	2.0/1.8	45
4''	Rubber	100	26	116	85x72	85x72	61x54	61x54	8.4	2.0/1.8	55

1''	PVC	25.5	13	33	37.5x19.6	38x32	29	29.5x23.5	4.2	1.2/1.2	10
1.25''	PVC	30	13	36	37.5x19.6	38x32	29	29.5x23.5	4.2	1.2/1.2	15
1.5''	PVC	39	17	50	46x25	47x39	36x15	35x28	5	1.2/1.2	20
2''	PVC	50	21	63	58x40	59x47	45x25	45x35	6.2	1.5/1.5	30
2.5''	PVC	65	26	84	70x47	70x58	55x28	53x41	8.4	2.0/1.8	35
3''	PVC	75	26	95	70x47	70x5.8	55x28	53x41	8.4	2.0/1.8	45

1.5''	PU	39	17	50	46x25	47x39	36x15	35x28	5	1.2/1.2	20
2''	PU	50	21	63	58x40	59x47	45x25	45x35	6.2	1.5/1.5	30
2.5''	PU	65	26	84	70x47	70x58	55x28	53x41	8.4	2.0/1.8	35
3''	PU	75	26	95	70x47	70x5.8	55x28	53x41	8.4	2.0/1.8	45

1.5''	TPR	39	17	50	46x25	47x39	36x15	35x28	5	1.2/1.2	20
2''	TPR	50	21	63	58x40	59x47	45x25	45x35	6.2	1.5/1.5	30
2.5''	TPR	65	26	84	70x47	70x58	55x28	53x41	8.4	2.0/1.8	35
3''	TPR	75	26	95	70x47	70x5.8	55x28	53x41	8.4	2.0/1.8	45

1.5''	Caster Iron	39	17	50	46x25	47x39	36x15	35x28	5	1.2/1.2	20
2''	Caster Iron	50	21	63	58x40	59x47	45x25	45x35	6.2	1.5/1.5	30
2.5''	Caster Iron	65	26	84	70x47	70x58	55x28	53x41	8.4	2.0/1.8	35
3''	Caster Iron	75	26	95	70x47	70x5.8	55x28	53x41	8.4	2.0/1.8	45
4''	Caster Iron	75	26	95	70x47	70x5.8	55x28	53x41	8.4	2.0/1.8	45

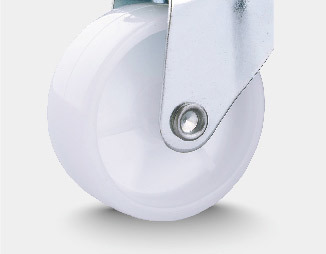

White Polypropylene

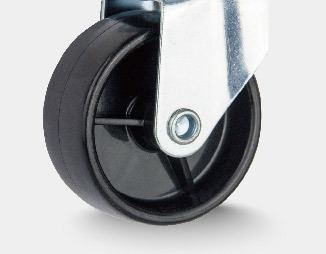

Black Polypropylene

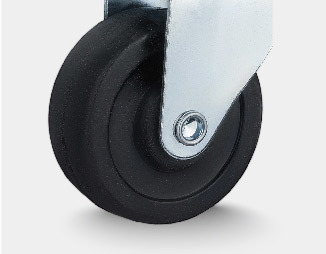

Black Rubber

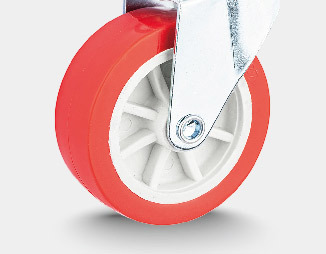

Red Polyvinyl Chloride on white Polypropylene

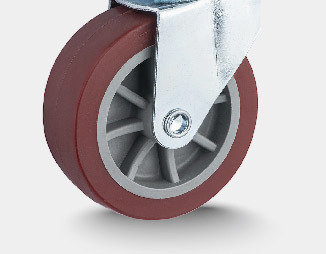

Maroon Polyurethane on grey Polypropylene
Black Polyurethane on grey Polypropylene

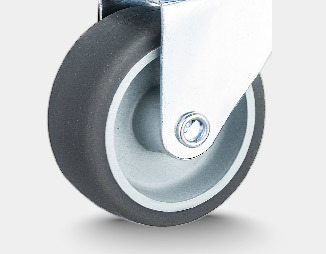

Grey Thermo-Plastic-Rubber on grey Polypropylene

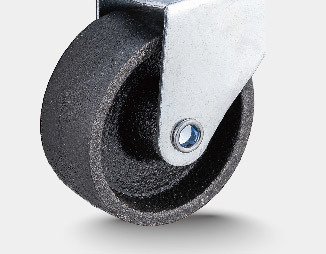

Cast lron

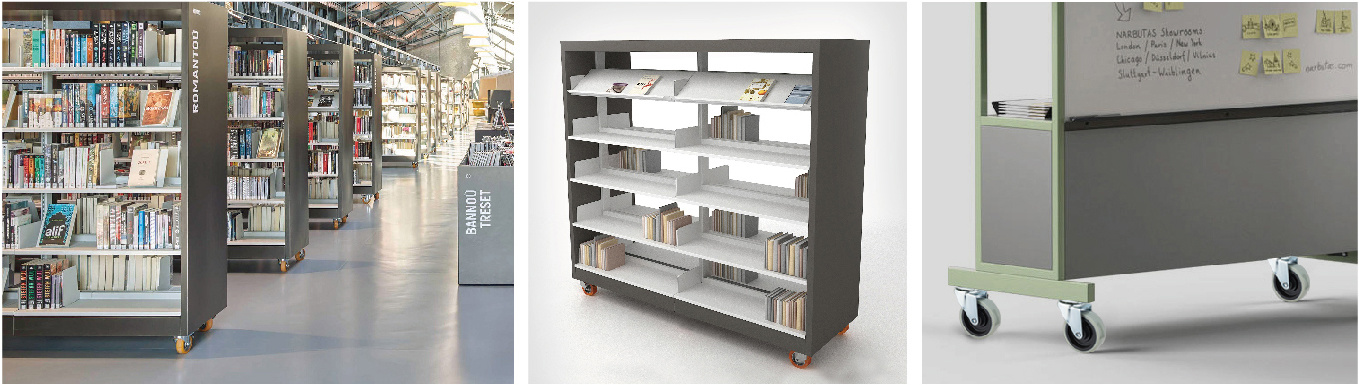

➤Furniture
➤Institutional
➤Laundry
➤Retail Environment
